Developers lose money on bad assumptions. A parcel looks clean on paper, the price is right, and the timeline seems workable. Then construction starts, and something turns up that wasn’t on any document: an unrecorded easement, a drainage path cutting through the build zone, or lot dimensions that don’t match the deed.

Survey mapping is how you find those problems before they become your problems.

This article explains what survey mapping is, what it produces, and why developers who skip it at the start of a project tend to pay for it later in ways that are much harder to budget for.

What Is Survey Mapping?

Survey mapping is the process of collecting, measuring, and recording spatial data about a property and turning that data into an accurate, scaled drawing.

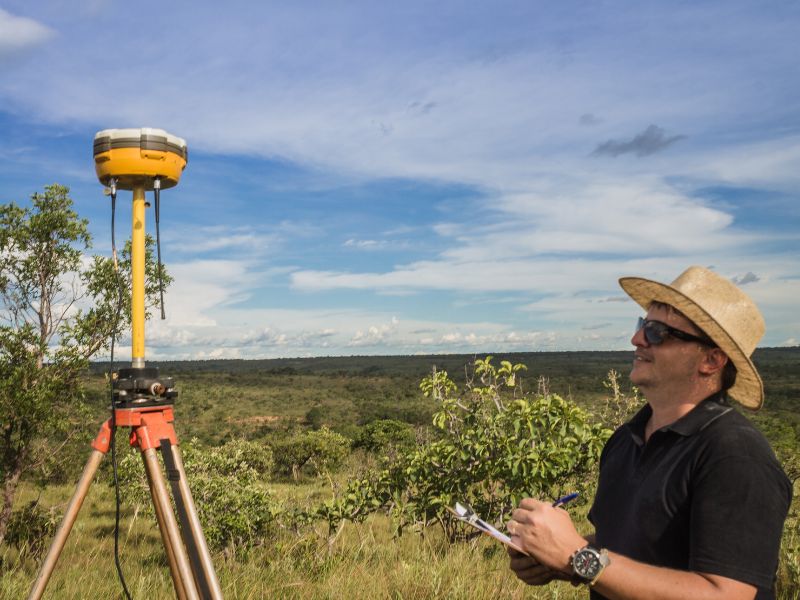

A licensed surveyor collects field measurements using professional equipment. That data gets processed and drawn into a map that shows the physical and legal features of the land: boundaries, elevations, structures, utilities, easements, flood zones, and other site conditions.

The output is a document that engineers, architects, planners, and attorneys can all work from. Unlike a satellite image or an online parcel map, a survey map carries legal weight. It can be sealed, recorded, and used in court.

What Survey Mapping Shows That Other Documents Don’t

County parcel maps are useful for general reference. They’re not accurate enough for development decisions.

A survey map goes much further. Depending on the type of survey, the survey data can show:

• Exact property boundaries with measured dimensions
• Corner monuments and their condition in the field
• Easements and rights-of-way crossing the parcel
• Existing structures and their distance from property lines
• Elevation contours and drainage patterns
• Encroachments from neighboring properties
• Flood zone designations tied to actual site elevations
• Utility lines, both above ground and recorded underground

For a developer, each of those items affects decisions. Where you can build. How high you need to build. What the site needs before construction can start. What disclosures are required at sale.

None of that information is reliably available from a deed or a county map alone.

Types of Survey Maps Used in Development

Survey mapping covers several distinct products. Each one serves a different stage or purpose in a development project.

Boundary Survey Map

This confirms the legal edges of a parcel. It locates corner monuments, verifies dimensions against recorded deeds, and identifies any encroachments or gaps. This is usually the first survey a developer orders on a new acquisition.

Topographic Survey Map

This records the elevation and terrain of a site. Contour lines show high and low points across the property. Engineers use this to design grading, drainage, and foundation placement. Without it, site design is based on guesswork.

Subdivision Plat Map

When a parcel gets divided into multiple lots, a subdivision plat is the document that creates the new legal lots. It gets recorded with the county and becomes the official record for all future transactions on those lots.

ALTA/NSPS Survey Map

This is the highest standard in commercial real estate. It combines boundary, improvement, and easement data into one document that meets national standards set by the American Land Title Association. Lenders and title companies require it for most commercial transactions.

Why Survey Mapping Matters at Every Stage of a Project

Most developers think of survey mapping as a one-time step before construction. The reality is that different types of survey maps serve different stages, and getting the right one at the right time prevents specific, predictable problems.

Before Acquisition

A boundary survey before purchase confirms you’re buying what’s being sold. Lot dimensions on a listing can be wrong. Encroachments from neighboring structures may not appear in any title document. A survey map done before closing gives you verified data to negotiate from or walk away on.

During Design and Permitting

A topographic survey map gives your engineer the elevation data needed to design the site correctly. Permitting offices in most jurisdictions require survey data to verify setback compliance and grading plans. Submitting without it causes delays.

During Construction

Construction staking uses the survey map to position structures accurately on the ground. Without it, contractors work from estimates. That creates risk on setbacks, utility clearances, and lot coverage calculations.

At Sale or Financing

Lenders and title companies review survey maps before approving financing or issuing title insurance. A property without a current survey, or with a survey that doesn’t match current conditions, can stall or kill a closing.

Common Mistakes Developers Make With Survey Mapping

Skipping the topographic survey to save money is the most common one. The cost of re-grading a site after discovering drainage problems during construction is almost always higher than the survey would have been.

Ordering the wrong survey type is another. A boundary survey tells you where the property lines are. It doesn’t tell you what the land does between those lines. If your project requires elevation data, drainage design, or utility coordination, a boundary survey alone won’t cover it.

Waiting too long is a third. A survey ordered after design is already underway means any problems discovered have to be worked around instead of designed for. That’s more expensive and slower.

What to Expect From the Survey Mapping Process

A licensed surveyor visits the site, collects field measurements, and researches relevant records including recorded deeds, prior surveys, and county plat maps. That data gets compiled into the survey drawing.

The final product is reviewed, signed, and sealed by the licensed surveyor. That seal is what gives the document legal standing for use with lenders, permitting offices, and courts.

Turnaround time varies based on the type of survey, the size of the parcel, and how complex the records research turns out to be. A straightforward residential boundary survey on a recorded subdivision lot moves faster than an ALTA on a commercial parcel with multiple easements and a disputed boundary.

Plan for the survey early. It’s rarely the longest step in a project, but when it’s ordered late, it becomes the thing everything else waits on.

Frequently Asked Questions

Is survey mapping the same as a property appraisal?

No. An appraisal estimates the market value of a property. Survey mapping records its physical and legal characteristics. They serve different purposes and are done by different licensed professionals.

Can I use a survey map from a previous owner?

Sometimes. If the map was done recently and the property hasn’t changed, it may still be valid for some purposes. Lenders and title companies often set their own requirements on how current a survey must be. A licensed surveyor can review an existing map and advise whether it meets your current needs.

Does survey mapping cover underground utilities?

Recorded utility easements typically appear on a survey map. The physical location of underground lines is a separate process called utility locating, which is usually coordinated before any excavation work begins.

How is a survey map different from a GIS map?

GIS maps aggregate data from multiple sources and are useful for planning and research. They’re not field-verified and don’t carry legal weight. A survey map is based on direct field measurements by a licensed surveyor and can be used in legal and regulatory proceedings.

What happens if a survey map shows a problem with the property?

That depends on the problem. An encroachment from a neighbor can sometimes be resolved through a recorded agreement or a boundary line adjustment. An easement that crosses the build zone may require a redesign. A flood zone designation that affects buildable area may support a LOMA request if the elevation data qualifies. A survey map identifies the issue. What comes next depends on the specific finding.
